Custom electric tricycle chord horn

Get Latest Price

Payment Type:	L/C,D/P,D/A
Incoterm:	FOB,CIF,EXW
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Land,Air
Port:	SHANGHAI,QINGDAO,LIANYUNGANG

Contact Now

Product Description

Product Attributes

Brand: GUANWEI

Place Of Origin: China

Size: customizable

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Carton packaging
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

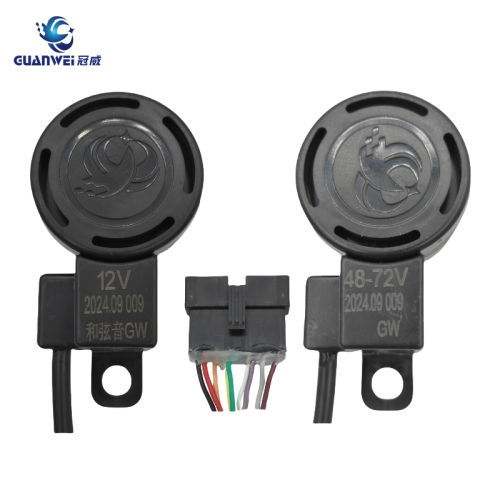

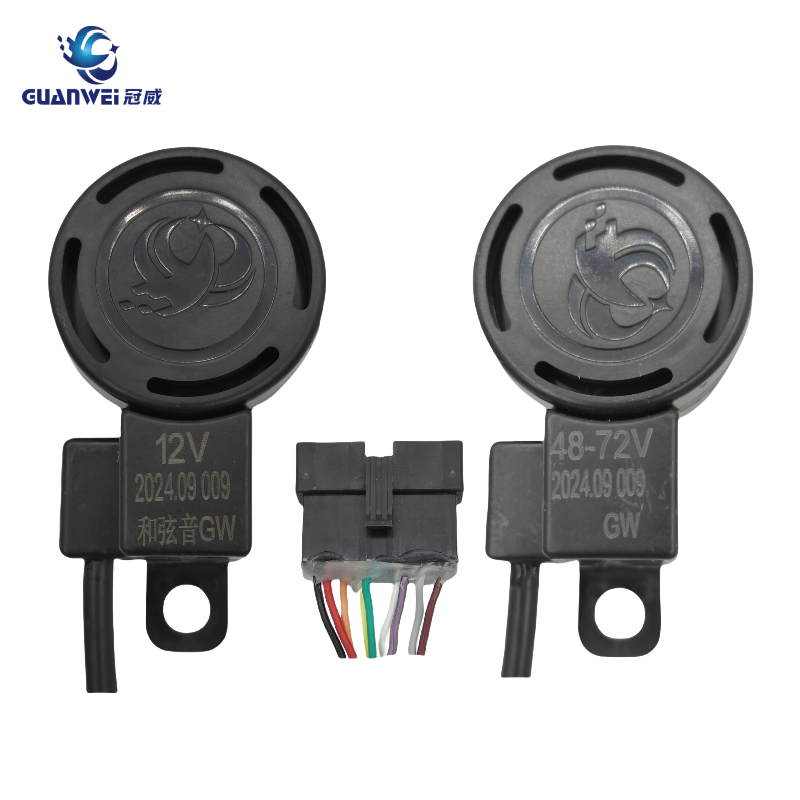

Electric car chord horn



Product Description

Custom electric tricycle/two wheels chord horn

Customizable product specifications:

One, 12V/48-72V single horn two, 12V/48-72V beep reverse horn three, 12V three-in-one horn (front horn turn reverse) Four, 48-72V multi-function horn (front horn Steering and reverse vibration alarm lock motor and other functions can be customized)

Technical requirement：

1.Rated working voltage is 12V;

2.The whistle sound is greater than 105 decibels within one meter;

3.The rest of the technical requirements honking technical conditions GB/T15742-2001.

Parameter information：

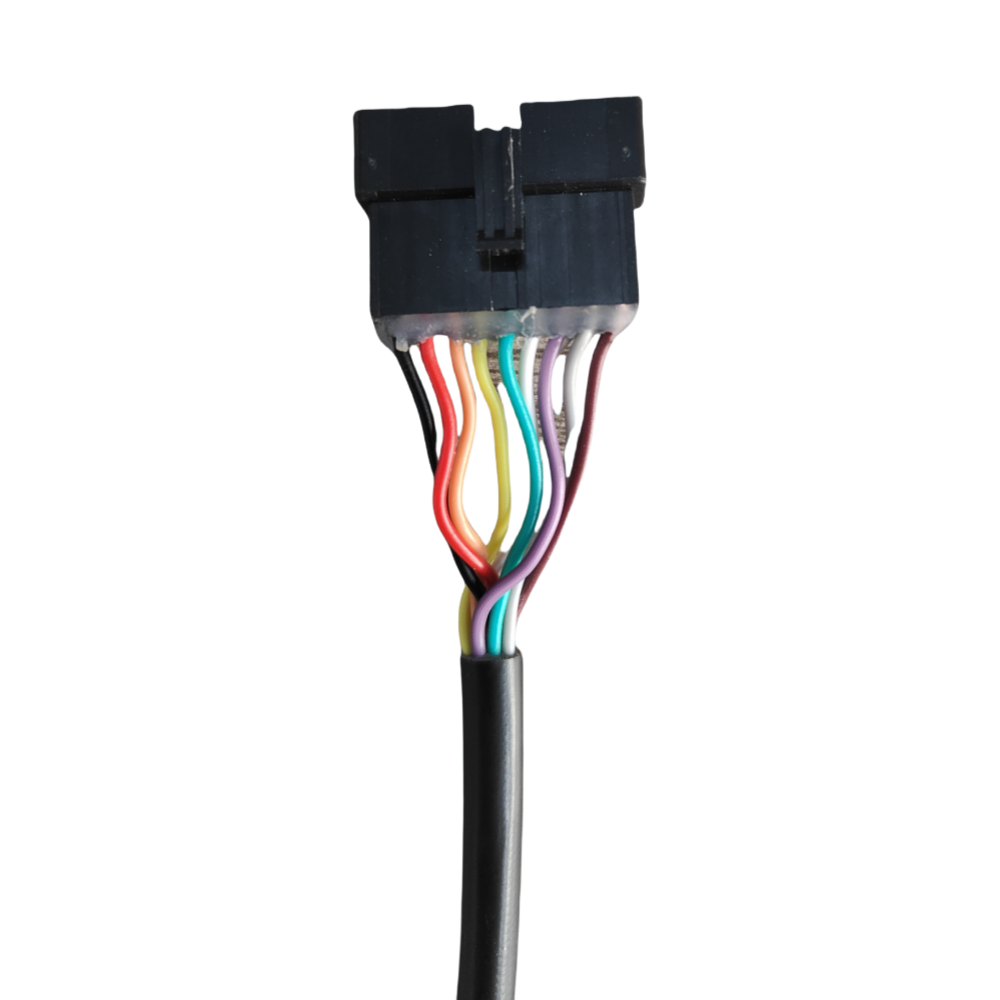

Colour	Feature	Wire diameter/mm2
Brown	Horn wire (active low)	0.2
Grey	Backing horn cable (low active)	0.2
Violet	Right turn control line (active low)	0.2
White	Left turn control line (active)	0.2
Green	Lock front normal wire (48V-60V)	0.2
Yellow	Left turn signal cable (12V)	0.2
Orange	Right turn signal cable (12V)	0.2
Red	The positive electrode is 12 volts	0.2
Black	Negative electrode	0.2

WHY CHOOSE US:

Xuzhou Guanwei Electronic Technology Co., LTD., founded in 2014, is an enterprise integrating product mold opening, circuit design, hardware and software development, product appearance design, product injection molding, production and sales. Over the years, the enterprise spirit of "excellent quality, industry excellence" business philosophy, continuous innovation, continuous growth.

Our main products are Golf Cart Stereo、Air Switch、Car Radio、Electric Car Accessories.
